H100-200

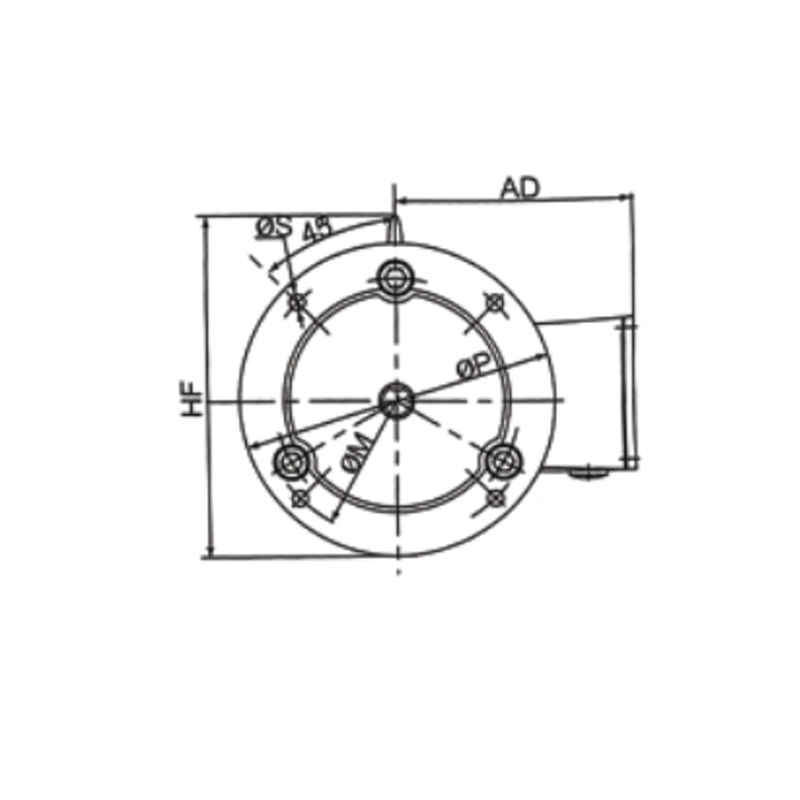

Frame without foot,end shield with flange(B5)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

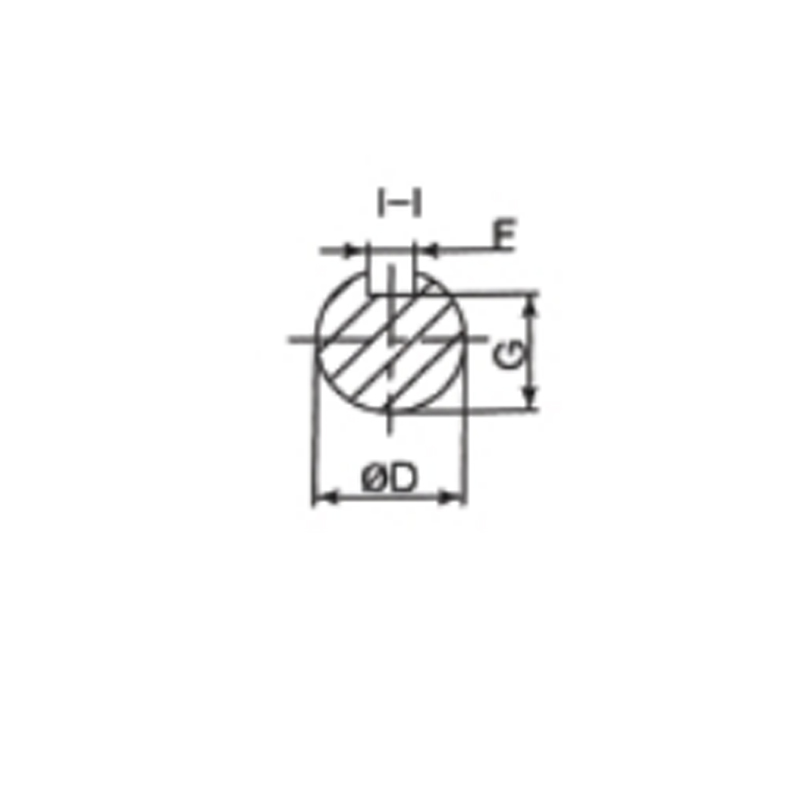

Frame	Ploes	Mounting dimension(mm)											Overall dimensions(mm)
		D	E	F	G	M	N	P	R	S	T	Holes	AC	AD	HD	L
		D	E	F	G	M	N	P	R	S	T	Holes	AC	AD	HD	L
80M	2.4	19	40	6	15.5	165	130	200	0	12	3.5	4	175	145	—	305
90S	2.4.6	24	50	8	20	165	130	200		12	3.5	4	205	170	—	395
90L	2.4.6	24	50	8	20	165	130	200		12	3.5	4	205	170	—	425
100L	2.4.6.8	28	60	8	24	215	180	250		14.5	4	4	215	180	245	435
112M	2.4.6.8	28	60	8	24	215	180	250		14.5	4	4	255	200	275	475
132S	2.4.6.8	38	80	10	33	265	230	300		14.5	4	4	310	230	335	535
132M	4.6.8	38	80	10	33	265	230	300		14.55	4	4	310	230	335	550
160M	2.4.6.8	42	110	12	37	300	250	350		18.5	5	4	340	260	390	730
160L	2.4.6.8	42	110	12	37	300	250	350		18.5	5	4	340	260	390	760
180M	2.4	48	110	14	42.5	300	250	350		18.5	5	4	390	285	435	805
180L	4.6.8	48	110	14	42.5	300	250	350		18.5	5	4	390	285	435	835
200L	2.4.6.8	55	110	16	49	350	300	400		18.5	5	4	445	320	495	890
225S	4.8	60	140	18	53	400	350	450		18.5	5	8	495	350	550	865
225M	2	55	110	16	49	400	350	450		18.5	5	8	550	350	550	865
225M	4.6.8	60	140	18	53	400	350	450		18.5	5	8	550	350	550	895
250M	2	60	140	18	53	500	450	550		18.5	5	8	630	390	615	995
250M	4.6.8	65	140	18	58	500	450	550		18.5	5	8	630	390	615	995
280S	2	65	140	18	58	500	450	550		18.5	5	8	630	435	675	1030
280S	4.6.8	75	140	20	67.5	500	450	550		18.5	5	8	630	435	675	1030
280M	2	65	140	18	58	500	450	550		18.5	5	8	630	435	675	1080
280M	4.6.8	75	140	20	67.5	500	450	550		18.5	5	8	630	435	675	1080
